02 / MANUFACTURING CAPABILITIES
CNC PROFILECUTTING &PLASMA CUTTING
Precision Cutting for Heavy Plates and Custom Shapes
We provide high-precision CNC profile cutting and plasma cutting solutions for heavy plates, offering accurate, complex and customized shapes as per customer drawings and specifications.
OVERVIEW
Our CNC profile cutting and plasma cutting facility is equipped to process heavy plates with high dimensional accuracy, clean cut edges and complex profiles. It is suitable for a wide range of industrial applications including flanges, rings, discs, valve components, foundation plates and custom parts.

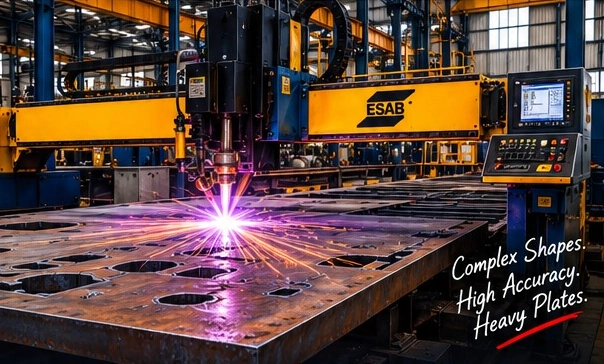

We use advanced CNC plasma cutting machines with high definition plasma technology to ensure precise and repeatable cutting of thick plates with excellent edge quality and dimensional control.
KEY FEATURES
- CNC controlled high precision profile cutting
- Suitable for thick and heavy plates
- Complex 2D profiles as per drawing / DXF files
- Clean and smooth cut edges
- Reduced material wastage through nesting
- Suitable for various materials
- Large plate size and thickness capability
- High accuracy and repeatability
- Bevelling (as required)
- Short lead time and cost effective solution
SIZE RANGE & CAPACITY
| Plate Size (L × W) | Up to 6500 mm × 2500 mm |
|---|---|
| Plate Thickness | 10 mm to 200 mm |
| Cutting Technology | CNC Plasma / Oxy-Fuel (as applicable) |
| Positioning Accuracy | ±1 mm (General); ±0.5 mm (Precision) |
| Bevelling | Manual / Automatic (as required) |
| Cutting Speed | As per material, thickness & profile |
| File Format | DXF, DWG, STEP (as per requirement) |
| Shape Capability | 2D Profiles, Complex Shapes, Flanges, Rings, Discs, Plates |
OUR EQUIPMENT

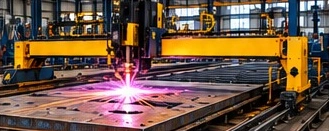

CNC Plasma Cutting Machine (ESAB)
- Table Size: 2500 mm × 6500 mm
- Cutting Thickness: 10 mm to 200 mm
- Cutting Technology: High Definition Plasma
- CNC Control: ESAB (PLC / CNC Based)
- Bevelling Option: Available (as required)

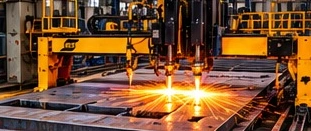

CNC Profile Cutting Machine (Oxy-Fuel / Plasma)
- Table Size: 2500 mm × 6500 mm
- Cutting Thickness: 10 mm to 200 mm
- Multi Torch System: Plasma + Oxy Fuel
- CNC Control: Advanced CNC Controller
- Suitable for: MS, Alloy Steel, Stainless Steel
CAD/CAM & Nesting Software
- 2D Drawing Import (DXF/DWG)
- Optimized Nesting for Minimum Material Wastage
- Complex Profile Cutting
- Barcode / Identification Marking (as required)
- Integration with Production Planning
MATERIAL GRADES
| Carbon steel | IS 2062 E250, E350, E450; IS 2004; ASTM A36; ASTM A105 |
|---|---|
| Pressure vessel / high tensile | ASTM A516 Grade 70; Fe 410 / Fe 490 where applicable |
| Alloy steel | EN8, EN9, EN19, EN24; SAE 4340; AISI 4140 / 4340 |
| Stainless steel | SS304, SS316, SS316L, SS410 |
| Duplex / super duplex | F51, F53, F55; S31803 / S32750 / S32760 as specified |
| Wear resistant | Hardox 400 / Hardox 450 |
| Other Materials | Other customer-specified grades subject to technical review |
APPLICATION INDUSTRIES
PRODUCT EXAMPLES
More about our CNC plasma cutting services
Cutting Today. Components for Tomorrow.
We provide high precision CNC plasma cutting services for plates from 10 mm to 200 mm thickness. Our advanced CNC plasma cutting machines deliver accurate, clean and cost-effective cutting for a wide range of industrial applications.
Precision CNC plasma profile cutting for 10–200 mm plates, producing flanges, rings and custom profile components as per drawing.
Precision in Every Cut. Strength in Every Shape.
Any Profile. Any Size. Any Challenge. We Cut It.
- High Accuracy
- Plates up to 200 mm
- Complex Profiles
- Faster Turnaround
- Cost Effective
- Experienced Team
Key Benefits
- Clean and accurate cuts
- Suitable for thick plates (up to 200 mm)
- Handles complex shapes and profiles
- Reduced machining time and cost
- Consistent quality
- Ideal for heavy industrial applications
From Plate to Precision with Plasma.
Cutting Capacity
| Thickness Range | 10 mm to 200 mm |
|---|---|
| Plate Size (Max) | 2500 mm x 6500 mm (2.5 m x 6.5 m) |
| Cutting Tolerance | As per Standard (±1 mm to ±2 mm) |
| Cutting Technology | CNC Plasma |
| Profile Type | 2D Profiles, Complex Shapes, Flanges, Rings, Custom Parts |
Our Plasma Cutting Products
- Flanges
- Rings
- Custom Profiles
- Base Plates
- Gusset Plates
- Profiled Components
Applications
- Flanges & Rings Manufacturing
- Pump & Valve Components
- Heavy Machinery Parts
- Construction & Structural Components
- Mining Equipment Parts
- Earthmoving & Construction Equipment
- Base Plates, Gussets & Brackets
- Custom Profile Parts as per Drawing
Why Choose Us
- Custom Solutions as per Drawing
- CAD/CAM Support (DXF, DWG Files)
- Quality & Dimensional Accuracy
- Timely Delivery
- Long Term Partnership
Your Ideas. Our Precision. Stronger Together.
Get a Quote
Have a cutting requirement? Send us your drawing or specifications.
