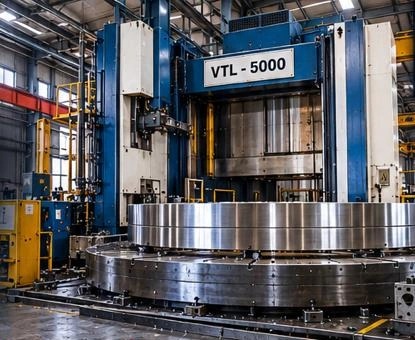

CNC VERTICAL TURNING LATHE (VTL)
| Make | HMT / Equivalent |
|---|---|
| Max. Turning Diameter | 5000 mm |
| Max. Height | 2000 mm |
OUR
MACHINING
FACILITIES
PRECISION MACHINING FOR CRITICAL APPLICATIONS
We are equipped with modern CNC and conventional machining facilities to deliver highly accurate and close-tolerance components as per international standards.
Precision engineering for a stronger tomorrow.
OD 100 mm to 5000 mm
Thickness 10 mm to 300 mm
Up to 15 Ton per Ring
Advanced Machining Facilities
Wide Range of Material Grades
High Precision & Close Tolerance
OUR MACHINING MACHINES
Large Size Machining · Advanced Machines · High Precision · Consistent Quality
CNC HORIZONTAL TURNING LATHE
| Make | DOOSAN PUMA 700L |
|---|---|
| Max. Turning Diameter | 1200 mm |
| Max. Turning Length | 3000 mm |
CNC VERTICAL MACHINING CENTER (VMC)
| Make | HAAS |
|---|---|
| Table Size | 1500 × 700 mm |
| X / Y / Z Travel | 1500 × 700 × 700 mm |
CONVENTIONAL VERTICAL LATHE
| Max. Turning Diameter | 3500 mm |
|---|---|
| Max. Height | 1500 mm |
RADIAL DRILLING MACHINE
| Make | HMT |
|---|---|
| Arm Length | 2000 mm |
| Max. Drilling Diameter | 80 mm |
HORIZONTAL BORING MACHINE
| Make | TOS / Equivalent |
|---|---|
| Spindle Diameter | 130 mm |
| Table Size | 1800 × 1600 mm |
| X / Y / Z Travel | 2500 × 2000 × 1500 mm |
CNC FLOOR BORING MACHINE
| Make | SCHIESS / Equivalent |
|---|---|
| Table Size | 3000 × 3000 mm |
| X / Y / Z Travel | 4000 × 3000 × 2000 mm |
| Max. Workpiece | 20 Tons |
MACHINING CAPABILITIES
- Outer Diameter: 100 mm to 5000 mm
- Thickness: 10 mm to 300 mm
- Close tolerances: as per drawing
- Complex profiles & special dimensions
- Surface finish as per requirement
ACCURACY & TOLERANCE
- Dimensional accuracy: ±0.02 mm to ±0.05 mm
- Surface finish: up to Ra 0.8 µm
- Concentricity, flatness, parallelism as per international standards
TYPES OF MACHINING
- Facing
- Turning (OD / ID)
- Boring
- Drilling
- Milling
- Grooving
- Threading
- Profile machining
- Custom machining as per drawing
MACHINED COMPONENTS
PRECISION. QUALITY. RELIABLE DELIVERY.
Share your drawings and requirements with our team.
