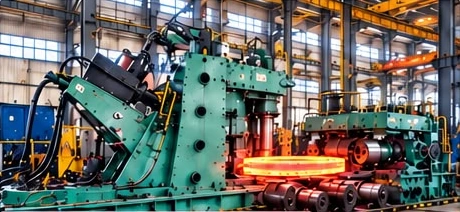

HORIZONTAL RING ROLLING MACHINE
| Max. Ring Outer Diameter | 5000 mm |
|---|---|
| Max. Ring Inner Diameter | 1000 mm (as per component) |
| Max. Ring Height | 1000 mm |
| Max. Ring Weight | 15 Ton |
| Ring Section (Thickness) | 10 mm to 300 mm |
| Drive Type | Hydraulic / CNC Controlled |
RING ROLLING
SOLUTIONS
PRECISION RINGS FOR CRITICAL INDUSTRIES
We manufacture high-quality forged and rolled rings in carbon steel, alloy steel, stainless steel, duplex, super duplex and special alloys. Our rings are used in pumps, valves, oil & gas, power, petrochemical, mining and heavy engineering industries.
Large diameter ring rolling for heavy engineering components.
OD 100 mm to 5000 mm
Thickness 10 mm to 300 mm
Up to 15 Ton per Ring
Horizontal Ring Rolling Machine
Wide Range of Material Grades
As per International Standards
OUR RING ROLLING MACHINES

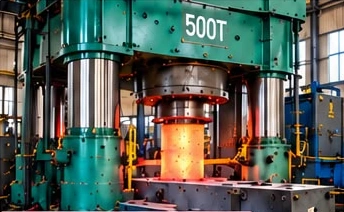

HYDRAULIC PRESS (500 TON)
| Press Capacity | 500 Ton |
|---|---|
| Max. Ring Outer Diameter | 2000 mm |
| Max. Ring Height | 1000 mm |
| Max. Ring Weight | 15 Ton |
| Applications | Pre-forming, sizing, shaping & plate bending |
TYPES OF INDUSTRIAL RINGS
Forged Rings
Heavy duty forged rings for critical applications
- Pump casings
- Large flanges
- Pressure equipment
- Heavy engineering
Seamless Rolled Rings
Seamless rings with uniform structure
- Pumps & valves
- Rotating equipment
- High strength parts
Wear Rings
Thin section rings for wear resistance
- Slurry handling
- Pump wear parts
- Mining equipment
- Wear resistance
Clamp / Clamping Rings
Precision clamping rings for assembly and sealing
- Flanges / assemblies
- Sealing
- Pressure applications
Bottom Rings
Large diameter bottom rings
- Valve bodies
- Large equipment
- Heavy engineering
Neck Rings
Thin rings for pump, valve and machinery
- Pump necks
- Valve components
- Machined assemblies
Impeller / Pump Rings
Rings for impellers and rotating equipment
- Impellers
- Rotating machinery
- High precision rings
Seat Rings
Precision seat rings for sealing
- Valves
- Pumps
- Sealing surfaces
RING MANUFACTURING PROCESS
Raw Material (Billet / Ingot)
Heating
Uniform heating in furnace as per grade
Pressing / Pre-forming
Pressing ingot to hollow and ring preform
Ring Rolling
On horizontal ring rolling machine
Heat Treatment
Normalizing / annealing (as required)
Machining (VTL / CNC)
Final Inspection
As per drawing & standards
MATERIAL GRADES
Carbon Steel (CS)
- IS 2062 E250 / E350 / E450
- ASTM A105 / A350 LF2
- EN8, EN19, EN24
Stainless Steel (SS)
- SS 304 / 304L
- SS 316 / 316L
- SS 410 / 420
Duplex & Super Duplex
- S31803 (F51)
- S32205 (F60)
- S32750 (F53)
- S32760 (F55)
Alloy Steel
- ASTM A182 F5, F11, F22
- F91, F92
- 20MnCr5, 42CrMo4
- Inconel, Monel, Hastelloy
APPLICATION INDUSTRIES
QUALITY & TESTING
INTERNATIONAL STANDARDS
PRECISION. QUALITY. RELIABLE DELIVERY.
Share your drawings and requirements with our team.
